Extreme 3-1 Gauge Panel OP/WT/FP/Tach 61-7042
QRP61-7042

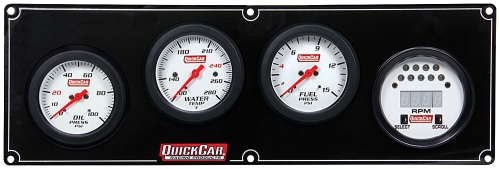

Quickcar 61-7042 Extreme 3-1 w/ Gauge Panel OP/WT/FP/Tach QuickCar’s Extreme Gauges are set apart from other mechanical gauges by the internal warning light feature. As pressures drop or temperatures rise, internal LED lights illuminate causing the entire face of the gauge to change color. This panel has Oil Pressure, Water Temperature, Fuel Pressure Extreme mechanical gauges, and the Extreme Digital Tach mounted in a black plate measuring 13-5/8” wide and 4-1/2” tall. The Extreme Tach has a display range of 0-18,000 RPM’s with a settable shift light. Cylinder settings and shift light display can be changed by simply touching the “select” and “scroll” lenses on the bottom of the tach. Panel comes complete with all sending units and wiring to complete the installation. The Oil and Fuel Pressure gauges have standard 1/8”-NPT fittings for plumbing lines (sold separately) while Water Temp. comes with a 1/2”-NPT adapter to mount in almost any high-performance engine. Internal warning lights activate when Oil Pressure drops below 20 PSI, Water Temp. rises above 235°F, and Fuel Pressure drops below 4 PSI.
