Headlight Switch, for Beetle & Type 3 68-70
311-941-531B
VW Headlight Switches are just about like all other automotive parts in that they will wear out and fail at the wrong time. If you didn't need 'em they would work just fine. Don't be left in the dark, replace your Headlight Switch while it's still working.
Works with 10mm Threaded nut p/n 111-941-515
Type 3: 68-70.

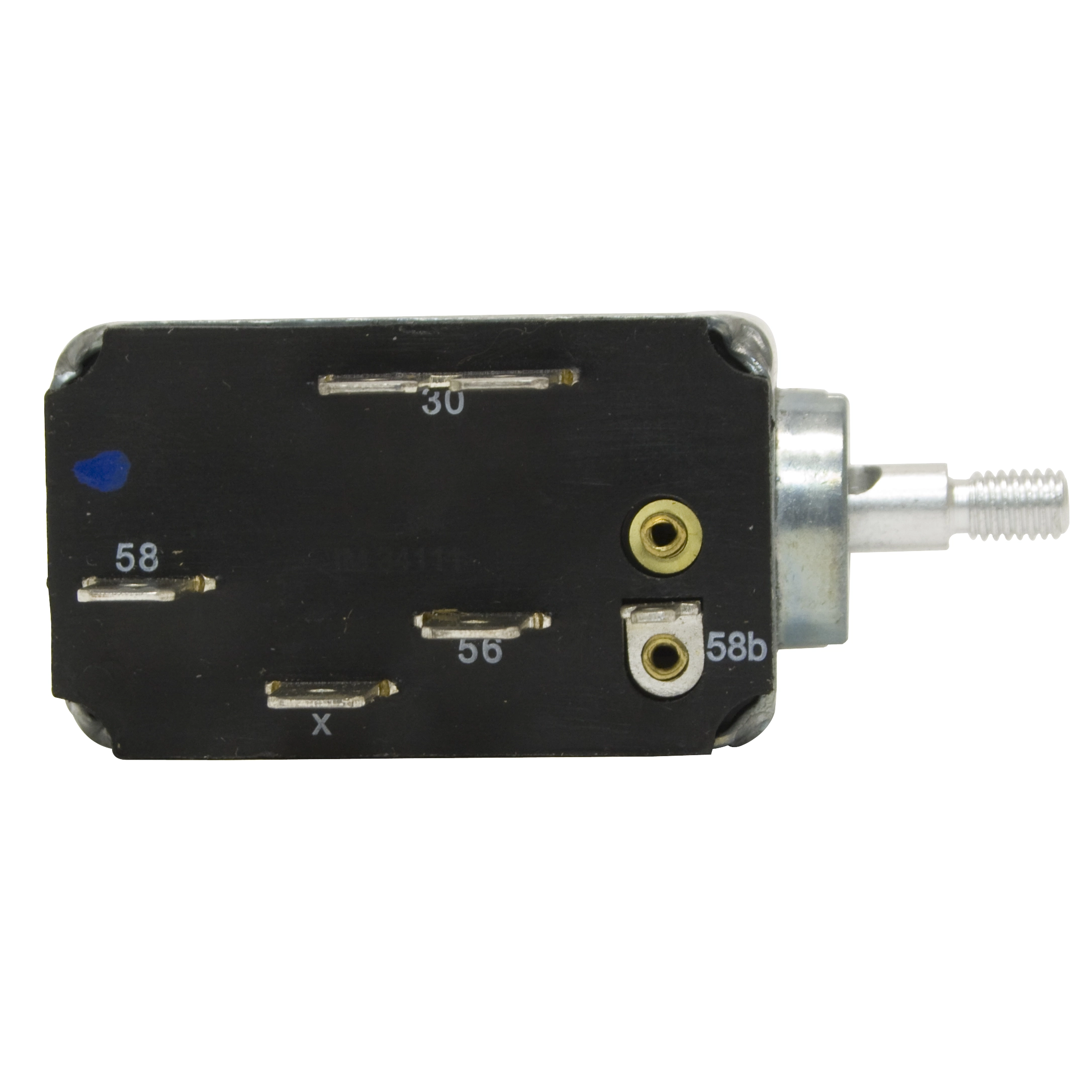

TERMINAL 30 -- BATTERY POWER FROM MAIN HARNESS
TERMINAL 30 -- POWER TO IGNITION SWITCH
TERMINAL 30 -- POWER TO FUSE BOX
TERMINAL 56 -- POWER TO FLOOR SWITCH OR H/L RELAY
TERMINAL 57 -- NOT USED IN MOST CASES
TERMINAL 58 -- POWER TO PARKING AND TAIL LIGHTS
TERMINAL 58b -- POWER TO DASH LIGHTS
FACTORY WIRING COLOR:
TERMINAL 30 -- RED
TERMINAL 56 -- WHITE OR WHITE WITH BLACK STRIPE
TERMINAL 58 -- GREY
TERMINAL 58b -- WHITE WITH RED STRIPE
Works with 10mm Threaded nut p/n 111-941-515
Type 3: 68-70.
TERMINAL 30 -- BATTERY POWER FROM MAIN HARNESS
TERMINAL 30 -- POWER TO IGNITION SWITCH
TERMINAL 30 -- POWER TO FUSE BOX
TERMINAL 56 -- POWER TO FLOOR SWITCH OR H/L RELAY
TERMINAL 57 -- NOT USED IN MOST CASES
TERMINAL 58 -- POWER TO PARKING AND TAIL LIGHTS
TERMINAL 58b -- POWER TO DASH LIGHTS
FACTORY WIRING COLOR:
TERMINAL 30 -- RED
TERMINAL 56 -- WHITE OR WHITE WITH BLACK STRIPE
TERMINAL 58 -- GREY
TERMINAL 58b -- WHITE WITH RED STRIPE
Regular Product
VW Headlight Switches are just about like all other automotive parts in that they will wear out and fail at the wrong time. If you didn't need 'em they would work just fine. Don't be left in the dark, replace your Headlight Switch while it's still working.
Works with 10mm Threaded nut p/n 111-941-515
Type 3: 68-70.
TERMINAL 30 -- BATTERY POWER FROM MAIN HARNESS
TERMINAL 30 -- POWER TO IGNITION SWITCH
TERMINAL 30 -- POWER TO FUSE BOX
TERMINAL 56 -- POWER TO FLOOR SWITCH OR H/L RELAY
TERMINAL 57 -- NOT USED IN MOST CASES
TERMINAL 58 -- POWER TO PARKING AND TAIL LIGHTS
TERMINAL 58b -- POWER TO DASH LIGHTS
FACTORY WIRING COLOR:
TERMINAL 30 -- RED
TERMINAL 56 -- WHITE OR WHITE WITH BLACK STRIPE
TERMINAL 58 -- GREY
TERMINAL 58b -- WHITE WITH RED STRIPE
Works with 10mm Threaded nut p/n 111-941-515
Type 3: 68-70.
TERMINAL 30 -- BATTERY POWER FROM MAIN HARNESS
TERMINAL 30 -- POWER TO IGNITION SWITCH
TERMINAL 30 -- POWER TO FUSE BOX
TERMINAL 56 -- POWER TO FLOOR SWITCH OR H/L RELAY
TERMINAL 57 -- NOT USED IN MOST CASES
TERMINAL 58 -- POWER TO PARKING AND TAIL LIGHTS
TERMINAL 58b -- POWER TO DASH LIGHTS
FACTORY WIRING COLOR:
TERMINAL 30 -- RED
TERMINAL 56 -- WHITE OR WHITE WITH BLACK STRIPE
TERMINAL 58 -- GREY
TERMINAL 58b -- WHITE WITH RED STRIPE
